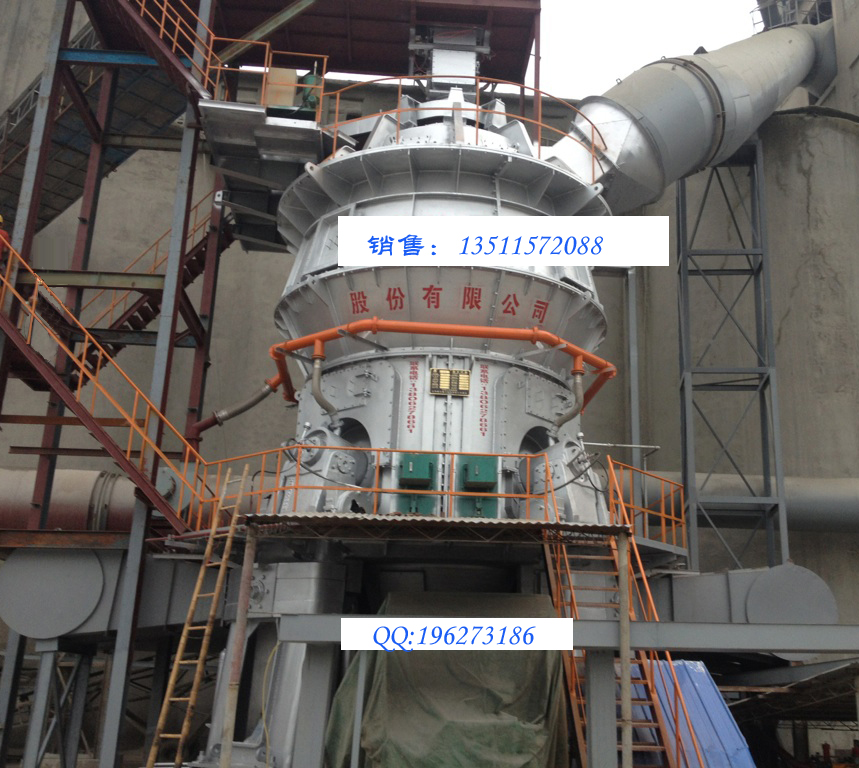

Technical parameters of HRM1500X limestone super-fine vertical roller mill

Technical parameters of HRM1500X limestone super-fine vertical roller mill
( Used in the flue gas desulphurization of the electricity industry)
(One),main technical parameter
Specification:               HRM1500S
Diameter of mill table:       φ1500
Diameter of mill roller:       φ1200mm
Number of mill roller:        2pcs
Mill table speed:            39r/min
Max feeding size:           35mm
Mill feeding moisture:        ≤5%
Product fineness: (325meshs)≥90% getting across Capacity:                  13~16t/h
Protect moisture:            ≤1.0%
Mill air feeding temperature:   <300 °C
               Mill air discharging temperature:  80~100°C
               Mill discharging air flow: 72000m3/h
Mill pressure drop:          5000~6000Pa
Working pressure of hydraulic system:≤8-14MPa
Mill dimension:   Length:  mm
                                  Width:   mm
                                  Height:  mm
Total weight of mill:                kg
 (two),Main motor
Type:                     Y355L1-6
Power:                     280KW
Speed:                     990r/min
Voltage:
(three),Main reducer
Manufacturer: Nanjing High Accurate Drive Equipment Manufacturing Group Co., Ltd
Type:MLX28
Qty:1pc
(four),high-low lubrication oil station and auxiliary oil tank
Model:D-500
Manufacturer:PENGFEI
(five),separator
Rotor speed:                 50~220r/min
Motor type:                 YVF2-250M-8
Motor power:                 30KW
(six),Hydraulic system
Type:                     XYZ-125
