Parameters of PFG120-45 Rolling Machine


Parameters of PFG120-45 Rolling Machine:
1. Name: PFG120-45 Rolling Machine
2. Material name: raw meal of cement, clinker and so on.
3. Total moisture content: ≤1-1.5%
4. Maximum feeding size: ≤70mm
5. Average feeding size: ≤25mm
6. Discharge size: more than 25% of processed materials are 0.08mm.
7. Productivity: 100-140t/h
8. Operation mode: continuous
9. Power supply mode: voltage: 380V; motor model: Y355L-8
10. Layout mode: 2*220KW power for indoor motor
11. Roller diameter: 1200mm
12. Roller width: 450mm
13. Linear velocity: 1.48m/s
14. Max. crushing capacity of rollers: 70KN/cm

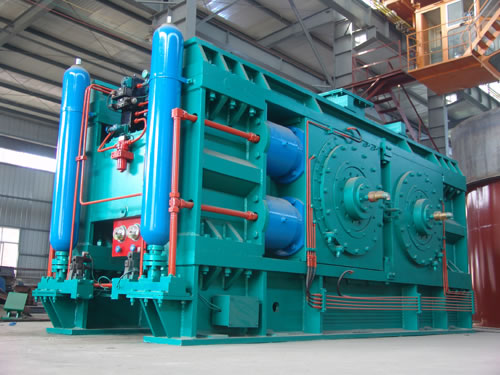

Rolling press production view
