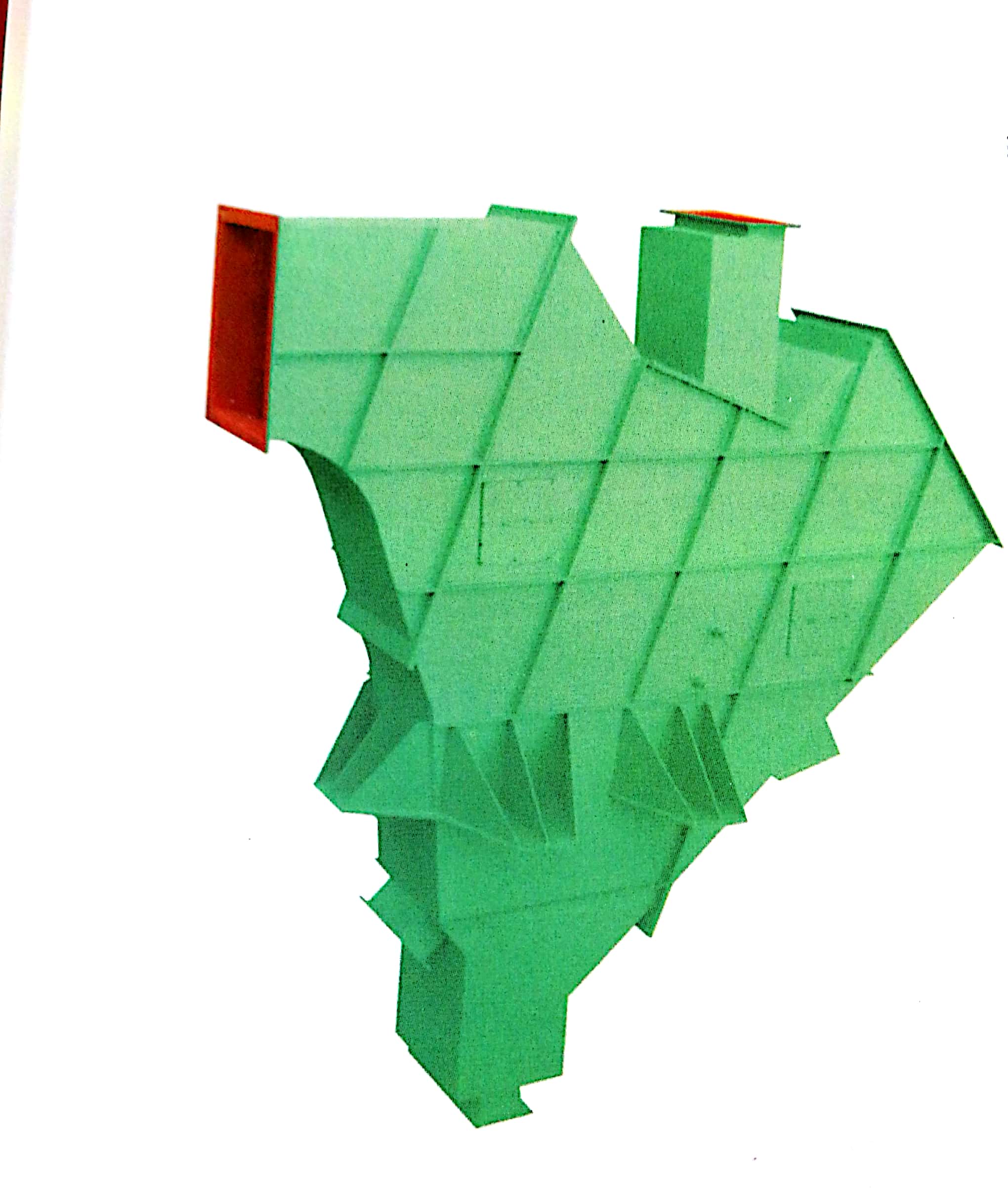

Technical Parameters of DSF600/140 Scatter Grader:
1. Name: DSF600/140 scatter grader
2. Application: Scattering and grading crushed materials
3. Amount: 1 set
4. Material: clinker
5. Total moisture content: ≤1~1.5%
6. Feeding size: Dmax≤30mm
7. Discharging size: more than 35% is no more than 0.08mm.
8. Production capacity: 480~540 t/h
9. Working mode: continuous
10. Power supply mode: voltage: 380V
11. Layout mode: indoor
12. Required power: 45 55kW
13. Scattering disc diameter: 1400mm
14. Rotating speed of main shaft: scattering disc: 450 rpm; wind wheel: 300~800 rpm
15. Weight: 30 t (excluding motor weight)
=========================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Iran, Japan, South Korea, Bengal, Pakistan, Turkey, Burma, Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
