Description:
Our oxidized pellet rotary kiln is typically designed to provide high-quality pellets for blast-furnace ironmaking. And it's able to help to improve productivity, as well as to protect environment.

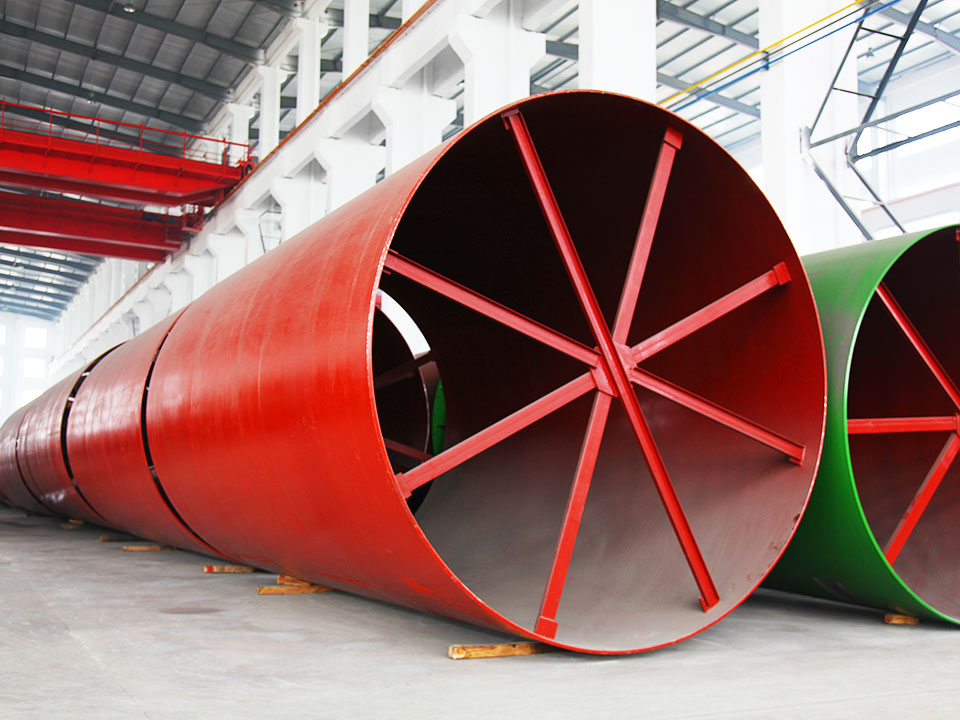

Our oxidized pellet rotary kiln mainly consists of rotating part, supporting part, kiln head cover, sealing parts of kiln head and end, and burning device.
The guard boards of kiln mouth employ individual cast, thus easy to install. And they have good heat-resistant quality as well as wear-resisting property.
Technical Parameters:
|
Name |
Specification |
Capacity (t/h) |
Power(KW) |
|
Rotary dryer |
Φ1.8x14m |
30-40 |
22 |
|
Φ2x14m |
40-60 |
22 |
|
|
Φ2.2x12m |
50-55 |
55 |
|
|
Φ2.2x16m |
40-45 |
75 |
|
|
Φ2.4x18m |
45-60 |
95 |
|
|
Φ3x20m |
160 |
220 |
|
|
Φ3.6x24m |
150 |
250 |
|
|
Φ4.2x25m |
250 |
315 |
|
|
Disc balling machine |
Φ3.6m |
18-20 |
22 |
|
Φ4.2m |
28-33 |
55 |
|
|
Φ4.5m |
35-45 |
75 |
|
|
Φ5.5m |
40-60 |
110 |
|
|
Φ6m |
65-70 |
110 |
|
|
Chain grate heater |
1.6x24m |
100,000-200,000tons/year |
15 |
|
2.4x24m |
300,000tons/year |
11 |
|
|
2.8x36m |
400,000-600,000tons/year |
18.5 |
|
|
2.8x42m |
400,000-600,000tons/year |
18.5 |
|
|
Φ2.2x18m |
10-12 |
45 |
|
|
Φ2.5x20m |
18-25 |
30 |
|
|
Φ2.8x22m |
30-34 |
90 |
|
|
Φ3x28m |
40 |
90 |
|
|
Φ3.5x30m |
50 |
220 |
|
|
Φ4x30m |
90 |
190 |
|
|
Φ4.7x35m |
140-180 |
315 |
|
|
Φ5x35m |
165-202 |
315 |
|
|
Φ6.1x40m |
226-335 |
315 |
|
|
Oxidized pellet rotary kiln |
20m 2 |
40 |
7.5x2 |
|
30m 2 |
40-60 |
11x2 |
|
|
40m 2 |
90 |
15x2 |
|
|
50m 2 |
112 |
15x2 |
|
|
69m 2 |
130-160 |
11x2 |
|
|
121m 2 |
270-304 |
15x2 |
|
|
128m 2 |
280-315 |
18.5x2 |
|
|
Sintering pellet cooler |
140m 2 |
302 |
11x2 |
Note: Specific parameters should refer to particular contract.
=====================================================================================================================
