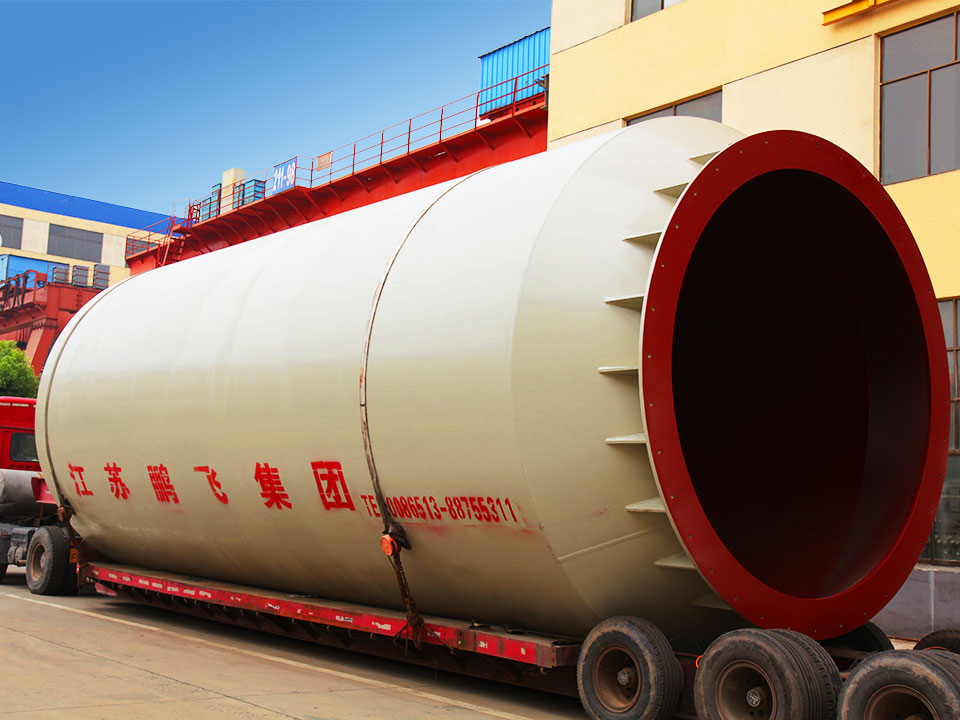

Φ5.0x74m Rotary Kiln

Technical Parameters ofφ5.0x74m Rotary Kiln:
1. Name of equipment: Y5074 rotary kiln
2. Application: 6000t/d dry process cement production line
3. Specification: Φ5.0x74m(inner diameter of cylinderxlength)
4. Type: single driving, single hydraulic thrust roller
5. Amount of supports: 3
6. Inclination: 4%(sine)
7. Rotating speed g: main driving: 0.35 ~4r/min; auxiliary driving: 7.58r/h.
8. Sealing mode: kiln head: sheet steel sealing; kiln end: air cylinder sealing
9. Cooling of kiln head: air cooling
10. Main driving motor: ZSN4-450-092
Power: 710 kW
Voltage: 660V
Rotating speed: 1000r/min
Speed adjusting range: 88.3~1000r/min
Protection level: IP54
Insulation level: F
Cooling mode: IC37
Starting torque: 2.5 times
Manufacturer: Shanghai Nanyang Electrical Machinery Factory
11. Main speed reducer:
Model: JH800C-SW306-28
Center distance: 1760
Manufacturer: CN Gpower Gearbox Co., Ltd
12. Tachogenerator:
Amount: 1set
Model: ZYS-100A
Power: 8 W
Voltage: 100V
Speed measuring range: 0~1000r/min
13. Auxiliary driving motor:
Amount: 1set
Model: Y250M-4
Power: 55 kW
Voltage: 380V AC
Rotating speed: 1480r/min
Protection level: IP44
Insulation grade: F
14. Auxiliary driving speed reducer:
Amount: 1 set
Model: JH280C-SW301-45
Center distance: 620 mm
Manufacturer: CN Gpower Gearbox Co., Ltd

=====================================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey,  Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
