Product Description

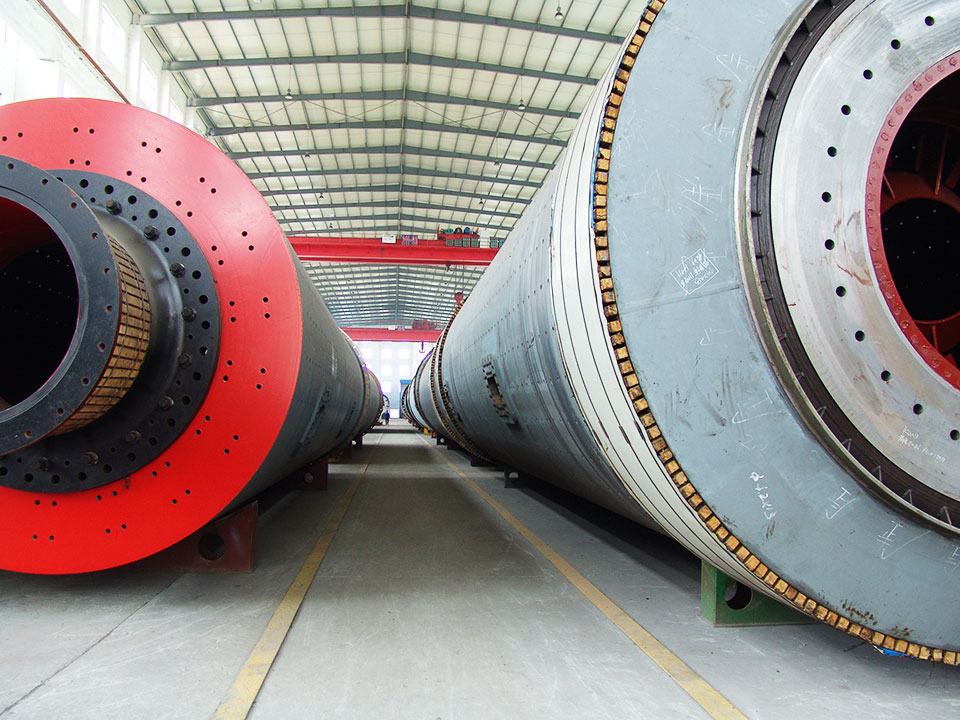

Φ 2.4*13m High fineness cement mill

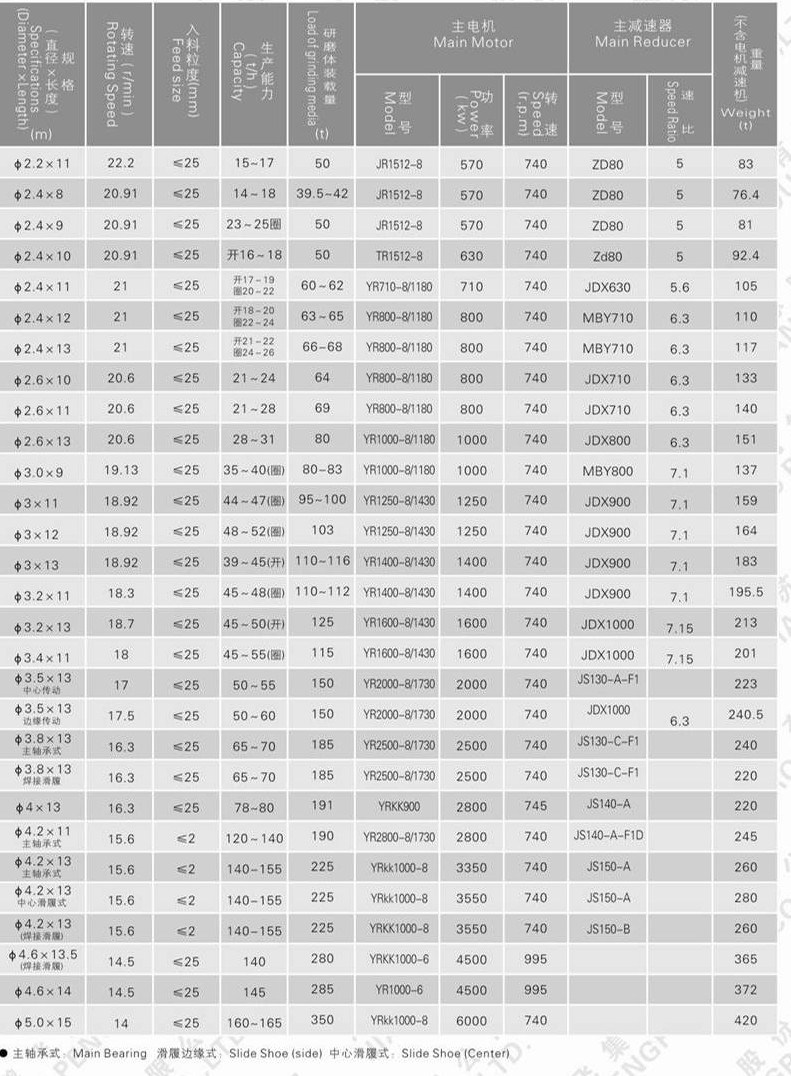

A): Main technical parameter
1, specification: Φ 2.4*13m
2, model: MGX2413
3, production capacity: 23_26t/h
(Open circuit current general Portland cement 425#, feeding size≤ 25mm,
Feeding moisture≤ 1%, fineness of finished product≥ 300m2/kg)
4, mill speed: 21.5r/min
5, Loading capacity of grinding medium: 70t (max)
6, main motor model: YR800-8/1180, power: 800kW, voltage: 6kV
7, main reducer: MBY710 I=6.3
8, Auxiliary motor model: Y180L-6, power: 15kW
9, Auxiliary reducer: Model: YNS497_100-I
10, lubrication method: Thin oil lubricating station (GYXZ-25A)
(1) low pressure system
Flow: 25L/min oil supply pressure: 0.4Mpa, model of pump: CB-B40
Oil-in temperature: 40± 3° C
Model of motor: Y90L-6 1.1kW
(2) high pressure system
Model of pump: 2.5MCY14_lB
Flow: 2.5L/min
Oil supply pressure: 32MPa
Motor: Y112M-6 2.2kW
(3) Cooling water consumption: 3.60 m3/h
(4)power of heater: 3kW× 3
11, weight of mill: 128t
A): Main technical parameter
1, specification: Φ 2.4*13m
2, model: MGX2413
3, production capacity: 23_26t/h
(Open circuit current general Portland cement 425#, feeding size≤ 25mm,
Feeding moisture≤ 1%, fineness of finished product≥ 300m2/kg)
4, mill speed: 21.5r/min
5, Loading capacity of grinding medium: 70t (max)
6, main motor model: YR800-8/1180, power: 800kW, voltage: 6kV
7, main reducer: MBY710 I=6.3
8, Auxiliary motor model: Y180L-6, power: 15kW
9, Auxiliary reducer: Model: YNS497_100-I
10, lubrication method: Thin oil lubricating station (GYXZ-25A)
(1) low pressure system
Flow: 25L/min oil supply pressure: 0.4Mpa, model of pump: CB-B40
Oil-in temperature: 40± 3° C
Model of motor: Y90L-6 1.1kW
(2) high pressure system
Model of pump: 2.5MCY14_lB
Flow: 2.5L/min
Oil supply pressure: 32MPa
Motor: Y112M-6 2.2kW
(3) Cooling water consumption: 3.60 m3/h
(4)power of heater: 3kW× 3
11, weight of mill: 128t
Product Advantages:
Here in Jiangsu Pengfei Group Co., Ltd, we have a wide range of product lines for customers, and we provide overall contracting services for cement production enterprises, including technological design, equipment supply, and assembly and debugging of equipment. And we undertake international biding projects as well. Moreover, we also provide equipment and technical service for grinding, calcining, crushing, dust collecting and transporting in enterprises like metallurgy, chemical industry, mining, electricity, and environment protection, etc.
1. Cement plant:
for this line, we provide various services including engineering design, civil construction, equipment, assembly and debugging, technology services, and general contracting service.
2. Cement grinding plant:
our cement grinding plant has advantages of simpler processing flow, easier operation, less investment, electricity saving, and environmental protection, and it can be mixed with admixture.
3. Industrial kiln and furnace:
our industrial kiln and furnace is widely used in fields like metallurgy, chemical industry, building refractories, environmental protection sector, and that.
4. Grinding equipment:
it is typically designed for grinding various ores and grindable materials for industrial and mining enterprises, and it can also be used for open-circuit grinding as well as circulatory closed-circuit grinding in conjunction with the powder classifier.
5. Crushing equipment:
our crushers are typically designed for coarse and medium crushing of ores and other materials.
6. Dust collector:
this kind of equipment is typically used in fields like metallurgy, electricity, chemical industry, building material, and many other sectors.
7. Cooling equipment:
our monocular cooler has features of compact, rational and simple structure, high thermal efficiency, low maintenance costs, less equipment investment and high-efficiency operation. And all of our coolers have the advantages of high efficiency and low operation costs.
8. Drying machine:
our rotary dryer is mainly used for drying slag, clay, limestone and more in fields of cement, chemical engineering, metallurgy, building material, etc.
9. Compound fertilizer equipment:
this kind of machine features easy technology, low investment and convenient operation.
========================================================================
Here in Jiangsu Pengfei Group Co., Ltd, we have a wide range of product lines for customers, and we provide overall contracting services for cement production enterprises, including technological design, equipment supply, and assembly and debugging of equipment. And we undertake international biding projects as well. Moreover, we also provide equipment and technical service for grinding, calcining, crushing, dust collecting and transporting in enterprises like metallurgy, chemical industry, mining, electricity, and environment protection, etc.
1. Cement plant:
for this line, we provide various services including engineering design, civil construction, equipment, assembly and debugging, technology services, and general contracting service.
2. Cement grinding plant:
our cement grinding plant has advantages of simpler processing flow, easier operation, less investment, electricity saving, and environmental protection, and it can be mixed with admixture.
3. Industrial kiln and furnace:
our industrial kiln and furnace is widely used in fields like metallurgy, chemical industry, building refractories, environmental protection sector, and that.
4. Grinding equipment:
it is typically designed for grinding various ores and grindable materials for industrial and mining enterprises, and it can also be used for open-circuit grinding as well as circulatory closed-circuit grinding in conjunction with the powder classifier.
5. Crushing equipment:
our crushers are typically designed for coarse and medium crushing of ores and other materials.
6. Dust collector:
this kind of equipment is typically used in fields like metallurgy, electricity, chemical industry, building material, and many other sectors.
7. Cooling equipment:
our monocular cooler has features of compact, rational and simple structure, high thermal efficiency, low maintenance costs, less equipment investment and high-efficiency operation. And all of our coolers have the advantages of high efficiency and low operation costs.
8. Drying machine:
our rotary dryer is mainly used for drying slag, clay, limestone and more in fields of cement, chemical engineering, metallurgy, building material, etc.
9. Compound fertilizer equipment:
this kind of machine features easy technology, low investment and convenient operation.
========================================================================
