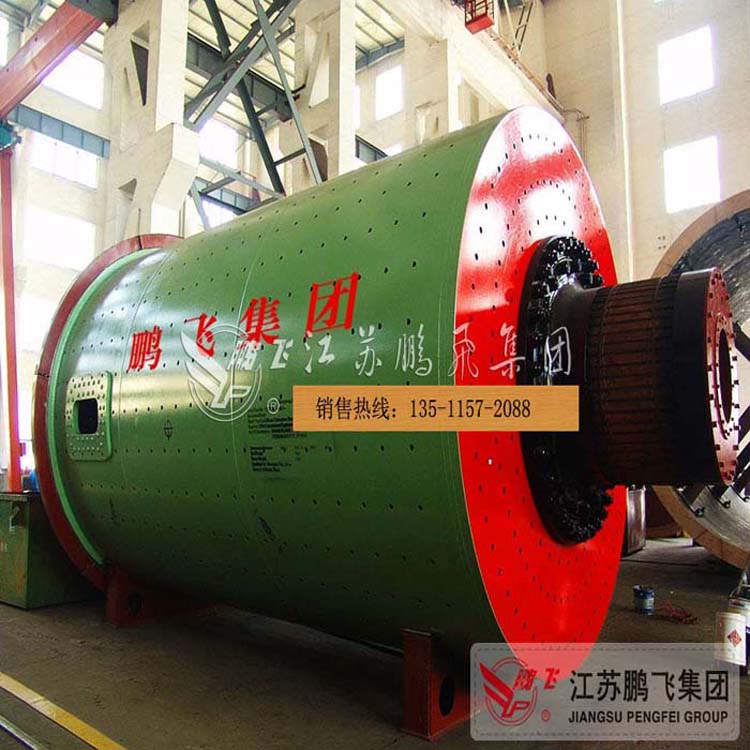

Φ2.4 * 13m Mining Ball Mill for Slag

A): Main technical parameter
1, specification: 2.4*13m
2, model: MB2413
3, production capacity: 10_13t/h(Open circuit current, slag, feeding size≤ 2mm,
     Feeding moisture≤ 1%, fineness of finished product≥ 400m2/kg)
4, mill speed: 21.5r/min
5, Loading capacity of grinding medium: 70t(max)
6, main motor model: YR800-8/1180, power: 800kW, voltage: 10kV
7, main reducer: MBY710 I=6.3
8, Auxiliary motor model: Y180L-6, power: 15kW
9, Auxiliary reducer: Model: ZSY224_100
10, lubrication method: Thin oil lubricating station (GYXZ-25A)
      (1) Low pressure system
      Flow: 25L/min oil supply pressure: 0.4Mpa, model of pump: CB-B40
      Oil-in temperature: 40± 3° C
      Model of motor: Y90L-6 1.1kW
      (2) high pressure system
      Model of pump: 2.5MCY14_lB
      Flow: 2.5L/min
      Oil supply pressure: 32MPa
      Motor: Y112M-6 2.2kW
     (3) Cooling water consumption: 3.60 m3/h× 2
     (4) power of heater: 3kW× 3
11, weight of mill: 130t
