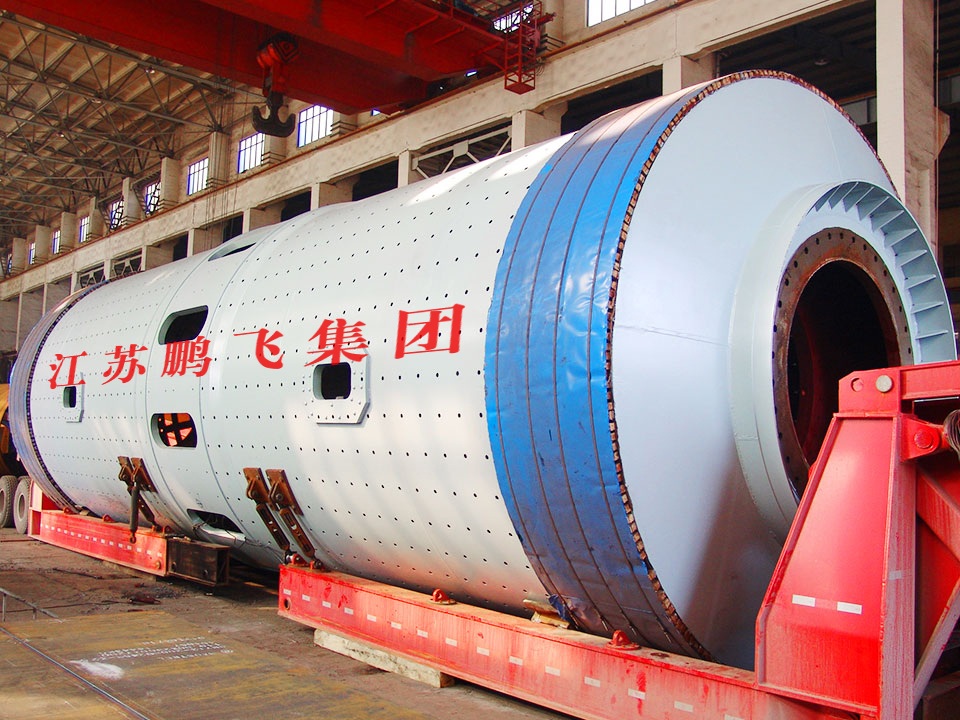

Drying Raw Mill

Raw Mill Raw material mill or raw mill is a crucial machine in the secondary crushing of materials which has experienced primary crushing and burdening. It is widely used to grind all kinds of rocks and other materials in cement, silicate products, new building material, fireproofing material and glass ceramics production industry, etc.

Technical Parameters of Drying Raw Mill:

Specification (diameterxlength )	Rotating speed (r/min)	Feeding size (mm)	Productivity (t/h)	Loading capacity of mill (t)	Main motor			Main speed reducer		Weight (t)
Specification (diameterxlength )	Rotating speed (r/min)	Feeding size (mm)	Productivity (t/h)	Loading capacity of mill (t)	Model	Power (kw)	Rotating speed (r.p.m)	Model	Speed ratio	Weight (t)
φ2.4x8	20.91	≤25	25~28	39~42	JRQ1512-8	570	740	ZD80-9	5	76.4
φ2.4x10	20	≤25	27~30 38~40	50	YR710-8/1180	710	740	JDX630	5.6	111
φ2.4x11	21	≤25	41~42 46~48	62~65	YR800-8/1180	800	740	MBY710	6.3	125
φ2.4x12	21	≤25	40~42 45~48	63~65	YR800-8/1180	800	740	MBY710	6.3	127
φ2.4x13	21.5	≤25	48~51	68~72	YR800-8/1180	800	740	MBY710	6.3	131
φ2.6x8	20	≤25	30~35	54	YR630-8/1180	630	740	JDX630	5.6	135
φ2.6x10	20.91	≤25	45~46	80	YR1000-8/1180	1000	740	JDX710	6.3	136
φ3x9	19.13	≤25	50~55	76~80	YR1000-8/1180	1000	740	JDX800	6.3	145
φ3.2x7	18.25	≤25	50~52	58	YR1000-8/1180	1000	740	MBY800	6.3	140
φ3.2x9	18.3	≤25	60~70	90	YR1250-8/1430	1250	740	JDX900	7.1	175
φ4.6x10 3.5	15	≤25	195	190		3550	740	JS150-B-F		476

Note: Parameters in the form are only for reference, so for specific ones, customers need to refer to the contract.

=================================================================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
