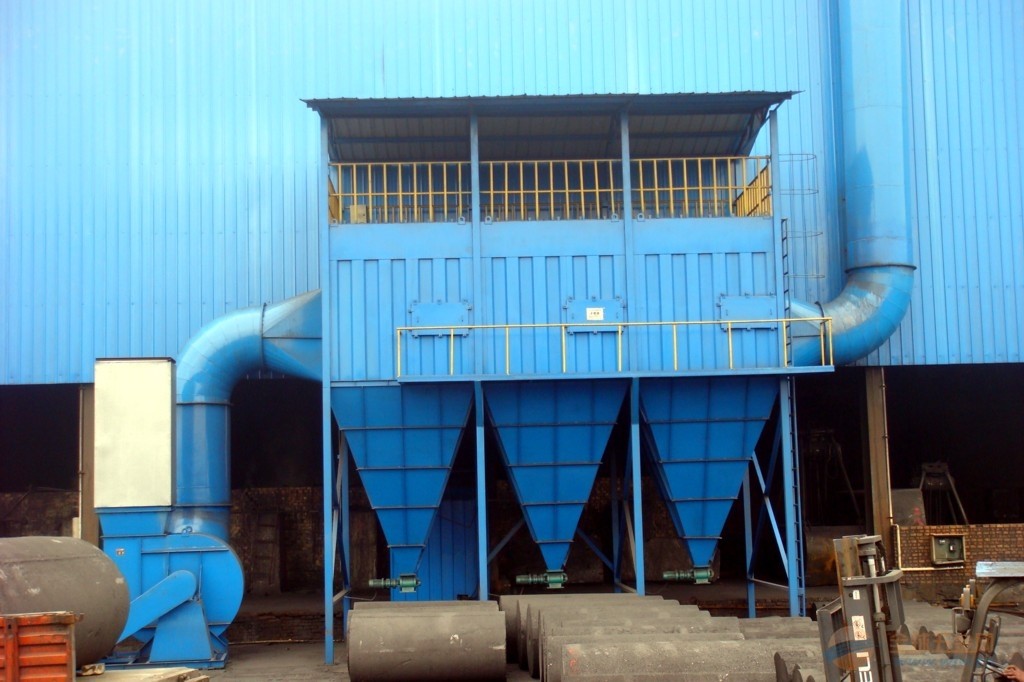

PPCS (A)128 Series Air Tank Pulse Bag Dust Filter

Technical Parameters of PPCS (A)128 Series Air Tank Pulse Bag Dust Filter

model technological parameters
PPCS(A)
128-6
PPCS(A)
128-
PPCS(A)
128-10
PPCA
128-2*6
PPCA
128-2*7
PPCA
128-2*8
PPCA
128-2*9
PPCA
128-2*10
PPCA
128-2*11
PPCA
128-2*12
PPCA
128-2*13
PPCA
128-2*14
Air processing capacity (m3/h) 67300 100900 112100 134600 157000 179400 201900 224300 247600 269100 291600 314000
Air filtering speed (m/min) 1.2-2.0(The dust filtering speed varies depending on different dust collection points, and specific velocity needs referring to form1. )
Total filtering area (m2) 935 1402 1558 1869 2181 2492 2804 3115 3427 3738 4050 4361
Net filtering area (m2) 779 1246 1402 1713 2025 2336 2648 2959 3271 3582 3894 4205
Amount of filtering chamber 6 9 10 12 14 16 18 20 22 24 26 28
Amount of filter bag 768 1152 1280 1536 1792 2084 2304 2560 2816 3072 3328 3584
Resistance of dust collecting(Pa) 1470-1770
Dust concentration of inlet  air (g/m3) <1300
Dust concentration of discharged air (g/m3) <0.1
pressure bearing capacity of bag filter shell (Pa) 6860
compressed air for dust collecting Pressure (Pa) (5-7)*105
Air consumption (m3/min) 3.6 5.4 6.0 7.0 8.3 9.5 10.7 12 13.1 14.3 15.5 16.7
Pulse valve (with solenoid valve) Amount 12 18 20 24 28 32 36 40 44 48 52 56
Specification (inch) 2 1/2”
Lift valve (with air cylinder) Amount 6 9 10 12 14 16 18 20 22 24 26 28
Specification (mm) Diameter of lift valve:Ф725; diameter of air cylinder: Ф100
Rigid impeller feeder Feed opening: 300*300mm; speed reducer:1.1kw; output:24m3/h specifications of electric double-plate valve: 305*915mm; Rotating speed: 75r/min; model of speed reducer:XWD4-7-1/3, power: 4kw,
Screw conveyer Specification Diameter: Ф300; output:21m3/h
Speed reducer Model: XWD2.2-5-1/43, power: 2.2kw
Air slide conveyor Slide specification: 250mm; when the dust concentration of feeding air is more than 700g/m3, environmental protection equipment, with air slide or large-size screw conveyor, should be utilized.
Controller of dust collecting program Both of the input and output voltages are 220 V.
Specifications and material of filter bag Diameter*length: Ф130*3060mm; weight of polyester needle felt: 450g/m2; use area: 120℃.
Area of thermal insulating layer (m2) 125 196 205 323 247 262 277 292 307 322 337 352
Total weight (excluding thermal insulating layer) (kg) 20100 26400 28900 36600 43900 50000 55400 60000 65400 72000 78000 84000
Note:

1. The net filtering area in the above form means the filtering area when the dust collecting work is done by only dust chamber.
2. The air consumption in the form is the amount when centralized air supply is used, and if individual air supply mode is chosen, the air consumption in the form should be multiplied by coefficient 1.3.

=========================================================================================================
