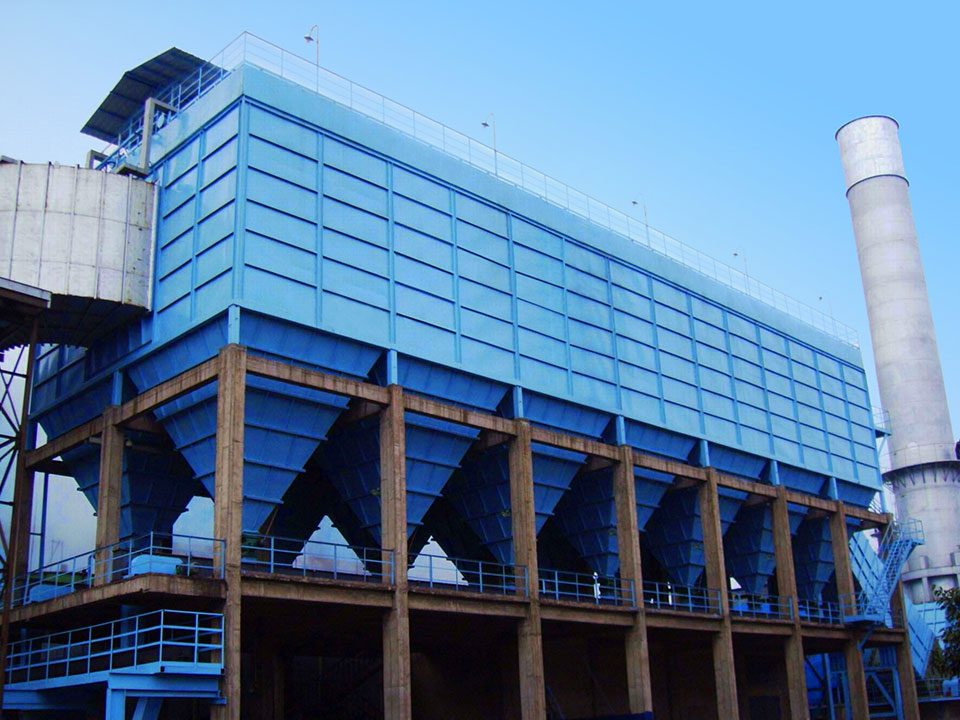

BFRS Kiln Inlet Bag Filter

Technical Parameters of BFRS Kiln Inlet Bag Filter:

Model		BFRS700 -2x3	BFRS700 -7	BFRS1200 -2x6	BFRS1200 -2x7	BFRS1200 -2x8
Technical performance	Flue gas treating volume	≤88500	102100	310000	≤370000	≤423000
	Gas temperature	<250	<250	≤250	≤250	≤250
	Feeding dust concentration	≤80	80	≤80	≤80	≤80
	Discharging dust concentration	≤100	100	≤100	≤100	≤100
	Total filtering area (m2)	4116	4872	14033	16263	18586
	Filtration air speed (m/min)	0.36	0.34	0.37	0.38	0.38
	Net filtration air speed (m/min)	0.5	0.46	0.45-0.49	0.46-0.49	0.45-0.48
	Resistance of environmental protection equipment(Pa)	1470	1766	1470	1470	1470
	Pressure of environmental protection equipment(Pa)	3920	3920	3920	3920	3920
	Pressure of air inlet (Pa)	>-1500	-290~-490
Structural performance	Chamber amountxbag amount in each chamber	6x140=840	7x140=980	12x138=1656	14x138=1932	16x138=2208
	Specification of filtering bag	φ200x7794	φ200x7794	φ302x9296(135 bags) φ302x7162(3 bags)	φ302x9296(135 bags) φ302x7162(3 bags)	φ302x9296(135 bags) φ302x7162(3 bags)
	Material of filtering bags	CW300-FQ803	CW300-FQ803	CW300-FQ803	ETWF500 S=0.45	ETWF500 S=0.45
	Blowback fan modelxstatic pressurexair volume	Y5-47NO8 2292 Pax 16800	230IEx14〞 x15254	Y5-48 NO12.5 2980 Pa x35240	Y5-47 NO12D 3577 Pax 46000	Y5-47 NO12D 3577 Pax 46000
	Rotating speed of motorxshaft power	Y200L-4 30kw	1488rpm x23kw	Y280S-4 1450rpm x75kw	Y280S-4 1450rpm x75kw	Y280S-4 1450rpm x75kw
	Specification of spiral gate		300x300		14 blowback fans φ914QGB -FQ125x355	16 blowback fans φ914QGB -FQ125x355
	Lift valve specificationsxamount Air cylinder model	Three φ510 10A-5 WFA1008 145A5	Seven φ510 QGBⅡF-100 x280-MF1	Twelve φ914 QGB-FQ125 x355-L2	Fourteen φ914 QGB-FQ125 x355	Sixteen φ914 (36�) QGB-FQ 125x350
	Purge valve specificationxamount Air cylinder model	One φ510 10A-5VFA 100B148A5	One φ460 QGBⅡF-100 x280-MF1	One φ914 QGB-FQ125 x355-L2	One φ914 QGB-FQ125 x35	One φ914 QGB-FQ125 x35
	Butterfly valvexamount Cylinder	Six 600 x90010A- 5VFA100B 148A5
Overall dimensions LxWxH(mm)		13491x9144 x17555	26423x3765 x17450	18288x21232 x18617	21336x21032 x16375	24384x21032 x16375
Equipment weight (kg)		103017	108999	373890	426400
axial flow fan						35-11NO6.3 1450rpmYSF -80240.75kw

=========================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
