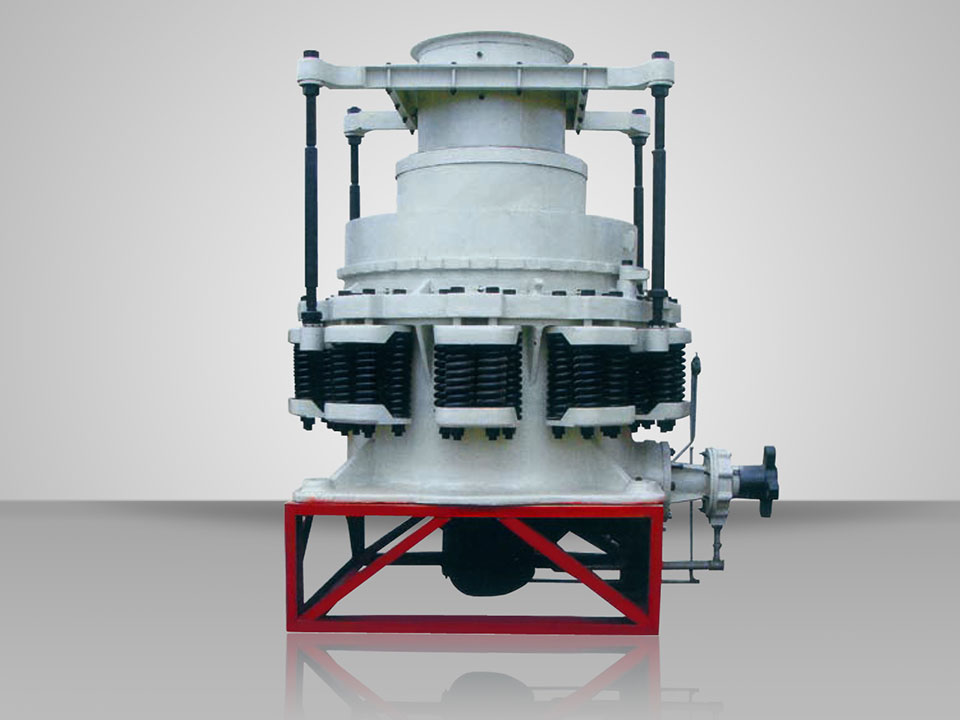

Spring Cone Crusher

Description of Spring Cone Crusher:
This spring cone crusher is typically designed to process a variety of mid-hard and above mid-hard ores and rocks in different fields, like metallurgy, construction, road building, chemistry, etc.
When compared with jaw crusher, the spring cone crusher has more advantages, such as stable structure, high production efficiency, convenient adjustment, lower operational costs, and more. Its spring safety system is used as the overload protection system to allow foreign iron lumps to get through the crushing chamber without damage to the crusher. Both glycerin and water sealing modes are employed to separate the stone powder and lubrication oil, thus achieving stable and reliable operation. The shape of the crushing chamber is decided by the size of feeding material. The standard form (PYB) is suitable for medium crushing, and the medium and short ones is appropriate for fine crushing.

Working Principles of Spring Cone Crusher:
Materials become squeezed and crushed between the movable and fixed cones. So the spring cone crusher is more advanced and efficient than the jaw crusher. Its movable cone is held by the spherical bearing, and the fixed one by a hanging erect shaft that is set in the eccentric sleeve of the stop and push bearing.

Both the movable cone and erect shaft are driven by the eccentric shaft sleeve. And the eccentric shaft sleeve is driven by horizontal shaft and fabricated gear, and the wheel of conveyor belt is directly driven by motor via the v-belts. The lower part of vertical shaft is fitted in the eccentric sleeve. When the eccentric sleeve rotates, a conical surface forms. Once the movable cone moves near the fixed one, rocks and ores are broken, and when the movable cone leaves, crushed material will be discharged. Besides, the fixed cone can go up and down in order to adjust the width of discharge hole.

Parameters of Spring Cone Crusher:

Type

Diameter of crushing cone (mm)

Size of inlet (mm)

Max. Feeding Size (mm)

Range of outlet (mm)

Output (t/h)

Power (KW)

Speed of  eccentric shaft (r/min)

Weight (including motor)
(t)

Overall Size (LengthxWidthxHeight ) (mm)

PYB600

Ф600

75

65

12-15

40

30

356

5

2234x1370x1675

PYD600

Ф600

40

35

3-13

12-23

30

356

5.1

2234x1370x1675

PYB900

Ф900

135

115

15-50

50-90

55

333

11.2

2692x1640x2350

PYZ900

Ф900

70

60

5-20

20-65

55

333

11.2

2692x1640x2350

PYD900

Ф900

50

40

3-13

15-50

55

333

11.3

2692xl640x2350

PYB1200

Ф1200

170

145

20-50

110-168

110

300

24.7

2790x1878x2844

PYZ1200

Ф1200

115

100

8-25

42-135

110

300

25

2790x1878x2844

PYD1200

Ф1200

60

50

3-15

18-105

110

300

25.3

2790x1878x2844

PYB1750

Ф1750

250

215

25-50

280-480

160

245

50.3

3910x2894x3809

PYZ1750

Ф1750

215

185

10-30

115-320

160

245

50.3

3910x2894x3809

PYD1750

Ф1750

100

85

5-15

75-230

160

245

50.2

3910x2894x3809

PYB2200

Ф2200

350

300

30-60

590-1000

280/260

220

80

4622x3302x4470

PYZ2200

Ф2200

275

230

10-30

200-580

280/260

220

80

4622x3302x4470

PYD2200

Ф2200

130

100

5-16

120-340

280/260

220

81.4

4622x3302x4470

Note: Parameters in the form is only for reference, and specific ones should be referred to the contract.

=========================================================================================================
