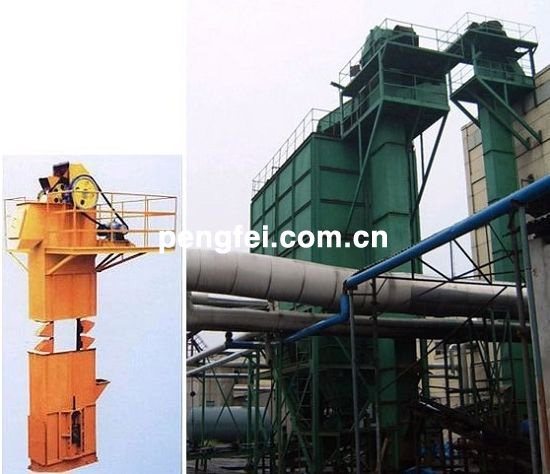

Technical Parameters of NE Series Bucket Elevator:
| Model | Lifting capacity | Bucket | Weight of operation parts | Max. size of materials | ||||||
| (m3/h) |
Volume (L) |
Bucket gap (mm) |
Bucket speed (m/min) |
Percentage (%) | ||||||
| 10 | 25 | 50 | 75 | 100 | ||||||
| NE15 | 15 | 2.5 | 203.2 | 29.8 | 28 | 65 | 50 | 40 | 30 | 25 |
| NE30 | 32 | 7.8 | 304.8 | 30.1 | 35 | 90 | 75 | 58 | 47 | 40 |
| NE50 | 60 | 14.7 | 304.8 | 30.1 | 64 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 35 | 400 | 31 | 89 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 170 | 52.5 | 400 | 31 | 112 | 130 | 105 | 80 | 65 | 55 |
| NE200 | 210 | 84.6 | 500 | 30 | 134 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 320 | 127.5 | 500 | 30 | 188 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 380 | 182.5 | 600 | 30 | 205 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 260.9 | 700 | 30 | 223 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 300.2 | 700 | 30 | 274 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 501.8 | 800 | 30 | 313 | 275 | 220 | 165 | 135 | 110 |
=====================================================================================================================
