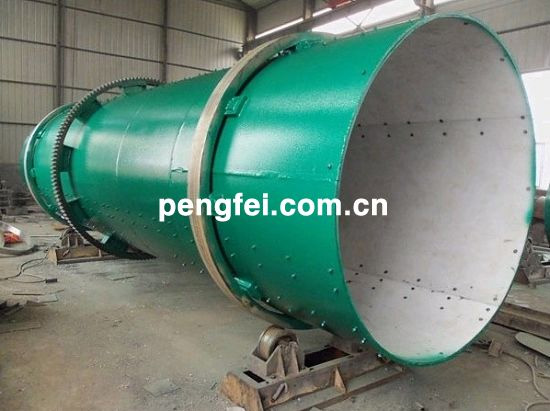

Description of TQT Series Rotary Drum Granulator:
Our TQT rotary drum granulator is an essential machine for compound fertilizer production. Its granulation ratio is as much as 70%, and its granulated products have strength more than 10N. Besides, its products have even nutrients, and strong adaptability. It can also be used in the production line of compound fertilizers used to supplement water for soils.
Parameters of TQT Series Rotary Drum Granulator:
Model | Output | Rotating speed | Motor type | Model of speed reducer | Speed ratio | Total weight |
Ф1.2×3.5M | 1.5-6 | 18 | Y160M-6/7.5KW | JZQ350 | 8.23 | 6 |
Ф1.4×4.0M | 2.5-10 | 15 | Y160L-6/11KW | JZQ350 | 8.23 | 8 |
Ф1.6×4.0M | 3-12 | 12 | Y160L-6/11KW | JZQ350 | 8.23 | 11.5 |
Ф1.6×6.0M | 3.5-14 | 12 | Y160L-6/11KW | JZQ350 | 12.5 | 14 |
Ф1.8×6.0M | 4-16 | 11.5 | Y180L-6/15KW | JZQ450 | 8.23 | 17 |
Ф1.8×8.0M | 5-18 | 11.5 | Y200L-6/18.5KW | ZL60-12 | 12 | 19.8 |
Ф2.0×7.0M | 14 | 8.8 | Y180L-4/22KW | ZL60-12 | 12 | 21.5 |
Ф2.0×8.0M | 8-30 | 8.8 | Y180L-4/22KW | ZL60-12 | 12 | 24.8 |
Ф2.2×6.0M | 12-40 | 8.6 | Y180L-8/22KW | ZL60-12 | 12 | 26.5 |
Ф2.2×8.0M | 10-35 | 8.6 | Y225M-6/30KW | ZL75-14 | 14 | 25.6 |
Ф2.4×10M | 15-24 | 8.2 | Y225M-6/30KW | ZL60-14 | 14 | 34.9 |
Ф2.4×8.0M | 12-40 | 8.6 | Y225M-6/30KW | ZL80-14 | 14 | 34 |
Ф2.6×12M | 30 | 10.5 | Y280M-6/55KW | ZL85-14 | 14 | 51.6 |
Ф2.6×10M | 20-55 | 10.5 | Y280S-6/45KW | ZL85-14 | 14 | 48.5 |
Ф2.8×12M | 32 | 10.5 | Y280S-6/75KW | ZLY224-14 | 14 | 66.5 |
Ф3.0×8M | 22-60 | 10.5 | Y315S-6/75KW | ZLY224-14 | 14 | 62.000 |
Ф3.0×12M | 25-65 | 10.5 | Y315L-6/90KW | ZLY250-14 | 14 | 86.500 |
Ф3.2×10M | 28-70 | 10.5 | Y315L-6/90KW | ZLY250-14 | 14 | 96.800 |
Ф3.2×14M | 26-85 | 10.5 | Y315L-6/110KW | ZLY280-14 | 14 | 95.000 |
=====================================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Japan, South Korea, Bengal, Pakistan, Turkey, Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
