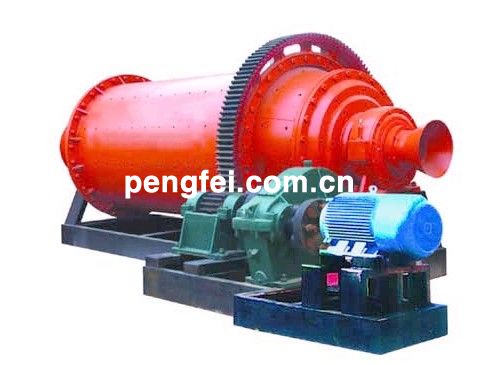

Wet Process Ball Mill

Description of Wet Process Ball Mill:
This wet process ball mill is mainly used to regrind materials that have been crushed, and it is widely applied in various industries, like cement, fireproof materials, silicate products, building materials, fertilizers, ferrous metals, nonferrous metals, glass, ceramics, and so on.

And our wet process ball mill is characterized by simple structure, convenient maintenance, reliable performance, easy installation, long-time continuous operation, longer service life, among others.

Working Principles of Wet Process Ball Mill:
This wet process ball mill is a horizontally rotary tubular device, and it has two stock bins. It is grid-type and gear-driven. Along the hollow shaft, materials are conveyed spirally and evenly to the first stock bin by the feeding device.

Technical Parameters of JR Series Wet Process Ball Mill:

Specification Output (t/h) Rotating speed of cylinder Loading capacity of grinding body (t) Main motor Main speed reducer Helper drive Weight
Model Power
1.5×5.7 3.0-8.0 29.2 11.0 JR127-8 130 ZD50-9-Ⅱ
23.6
1.8×6.4 6.0-13 24.5 19.6 JR138-8 245 ZD60-8-Ⅱ
36.0
2.2×6.5 8.0-16 21.4 32 JR158-8 380 ZD70-9-Ⅰ
47.5
2.4×6.0 10-20 20.9 29 JR4503-8 400 ZD70-9-Ⅰ
66.0
2.4×7.0 10-25 20.9 32.5 JR1512-8 475 ZD70-9-Ⅰ
73.0
2.4×8.0 10-28 20.9 38 JR1510-8 570 ZD80-8-Ⅱ
76.0
2.6×5.0 8.0-22 20.9 31 JR1512-8 475 ZD80-8-Ⅱ 11 68.0
2.6×6.5 8.0-30 20.9 34 JR1512-8 570 ZD80-8-Ⅱ 11 84.0
2.7×6.0 15-35 19.4 52 YR630-8 630 MBY630 11 94.0
2.7×7.0 16-38 19.4 60 YR710-8 710 MBY710 15 116
2.7×8.0 18-40 19.4 63 YR800-8 710 MBY710 15 122
3.0×6.0 18-36 19.4 68 YR710-8 710 MBY710 15 126
3.0×7.0 20-40 19.4 75 YR800-8 800 MBY710 15 132
3.0×9.0 25-45 19.4 85 YR1000-8 1000 MBY800 15 154.8
3.2×6.0 26-50 19.4 75 YR800-8 800 MBY710 15 135
3.2×7.0 28-55 18.3 81 YR1000-8 1000 MBY800 15 149
3.2×8.0 30-60 18.3 90 YR1000-8 1000 MBY800 15 160
3.2×9.0 35-65 17.5 96 YR1250-8 1250 MBY900 15 168
3.6×6.0 38-80 16.5 105 YR1600-8 1600 MBY1000 22 188.5
3.6×7.0 45-90 16.5 110 YR1600-8 1600 MBY1000 22 199.5
3.6×9.0 50-100 16.5 120 YR1800-8 1800 MBY1000 22 240

=====================================================================================================================
