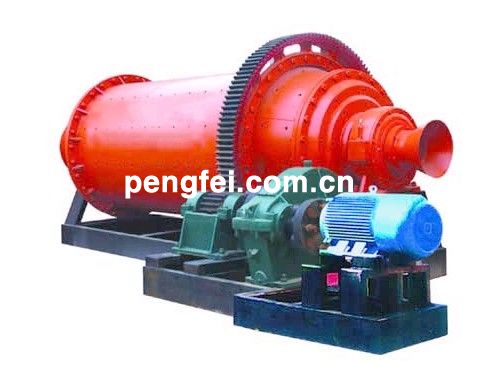

Description of Wet Process Ball Mill:
This wet process ball mill is mainly used to regrind materials that have been crushed, and it is widely applied in various industries, like cement, fireproof materials, silicate products, building materials, fertilizers, ferrous metals, nonferrous metals, glass, ceramics, and so on.
And our wet process ball mill is characterized by simple structure, convenient maintenance, reliable performance, easy installation, long-time continuous operation, longer service life, among others.
Working Principles of Wet Process Ball Mill:
This wet process ball mill is a horizontally rotary tubular device, and it has two stock bins. It is grid-type and gear-driven. Along the hollow shaft, materials are conveyed spirally and evenly to the first stock bin by the feeding device.
Technical Parameters of JR Series Wet Process Ball Mill:
| Specification | Output (t/h) | Rotating speed of cylinder | Loading capacity of grinding body (t) | Main motor | Main speed reducer | Helper drive | Weight | |
| Model | Power | |||||||
| 1.5×5.7 | 3.0-8.0 | 29.2 | 11.0 | JR127-8 | 130 | ZD50-9-Ⅱ | 23.6 | |
| 1.8×6.4 | 6.0-13 | 24.5 | 19.6 | JR138-8 | 245 | ZD60-8-Ⅱ | 36.0 | |
| 2.2×6.5 | 8.0-16 | 21.4 | 32 | JR158-8 | 380 | ZD70-9-Ⅰ | 47.5 | |
| 2.4×6.0 | 10-20 | 20.9 | 29 | JR4503-8 | 400 | ZD70-9-Ⅰ | 66.0 | |
| 2.4×7.0 | 10-25 | 20.9 | 32.5 | JR1512-8 | 475 | ZD70-9-Ⅰ | 73.0 | |
| 2.4×8.0 | 10-28 | 20.9 | 38 | JR1510-8 | 570 | ZD80-8-Ⅱ | 76.0 | |
| 2.6×5.0 | 8.0-22 | 20.9 | 31 | JR1512-8 | 475 | ZD80-8-Ⅱ | 11 | 68.0 |
| 2.6×6.5 | 8.0-30 | 20.9 | 34 | JR1512-8 | 570 | ZD80-8-Ⅱ | 11 | 84.0 |
| 2.7×6.0 | 15-35 | 19.4 | 52 | YR630-8 | 630 | MBY630 | 11 | 94.0 |
| 2.7×7.0 | 16-38 | 19.4 | 60 | YR710-8 | 710 | MBY710 | 15 | 116 |
| 2.7×8.0 | 18-40 | 19.4 | 63 | YR800-8 | 710 | MBY710 | 15 | 122 |
| 3.0×6.0 | 18-36 | 19.4 | 68 | YR710-8 | 710 | MBY710 | 15 | 126 |
| 3.0×7.0 | 20-40 | 19.4 | 75 | YR800-8 | 800 | MBY710 | 15 | 132 |
| 3.0×9.0 | 25-45 | 19.4 | 85 | YR1000-8 | 1000 | MBY800 | 15 | 154.8 |
| 3.2×6.0 | 26-50 | 19.4 | 75 | YR800-8 | 800 | MBY710 | 15 | 135 |
| 3.2×7.0 | 28-55 | 18.3 | 81 | YR1000-8 | 1000 | MBY800 | 15 | 149 |
| 3.2×8.0 | 30-60 | 18.3 | 90 | YR1000-8 | 1000 | MBY800 | 15 | 160 |
| 3.2×9.0 | 35-65 | 17.5 | 96 | YR1250-8 | 1250 | MBY900 | 15 | 168 |
| 3.6×6.0 | 38-80 | 16.5 | 105 | YR1600-8 | 1600 | MBY1000 | 22 | 188.5 |
| 3.6×7.0 | 45-90 | 16.5 | 110 | YR1600-8 | 1600 | MBY1000 | 22 | 199.5 |
| 3.6×9.0 | 50-100 | 16.5 | 120 | YR1800-8 | 1800 | MBY1000 | 22 | 240 |
=====================================================================================================================
As world-known and high-quality cement machinery general contractor, Jiangsu Pengfei Group Co., Ltd can provide you with various machines, such as cement production line, cement grinding plant, active lime production line, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, drying equipment, cooling equipment, compound fertilizer equipment, Conveying Lifting Packing Equipment, Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Iran, Japan, South Korea, Bengal, Pakistan, Turkey, Burma, Vietnam, South Africa, Columbia, Bolivia, etc. If you need equipment such as rotary kiln, ball mill, vertical mill, rolling machine , please don't hesitate to contact us.
